Comprehensive | |||
---|---|---|---|
Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) | ||
PoE++ | IEEE802.3bt compliant: DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported) | ||
Current Consumption | 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply) | ||
Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | ||
Allowable Humidity Ranges | 20 % to 90 % (no condensation) | ||
Storage Temperature | -20 °C to 50 °C (-4 °F to 122 °F) | ||
Mass | Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket),Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket) | ||
Dimensions (W x H x D) | 170.0 mm x 211.0 mm x 171.0 mm(6.693 inches x 8.307 inches x 6.732inches) | ||

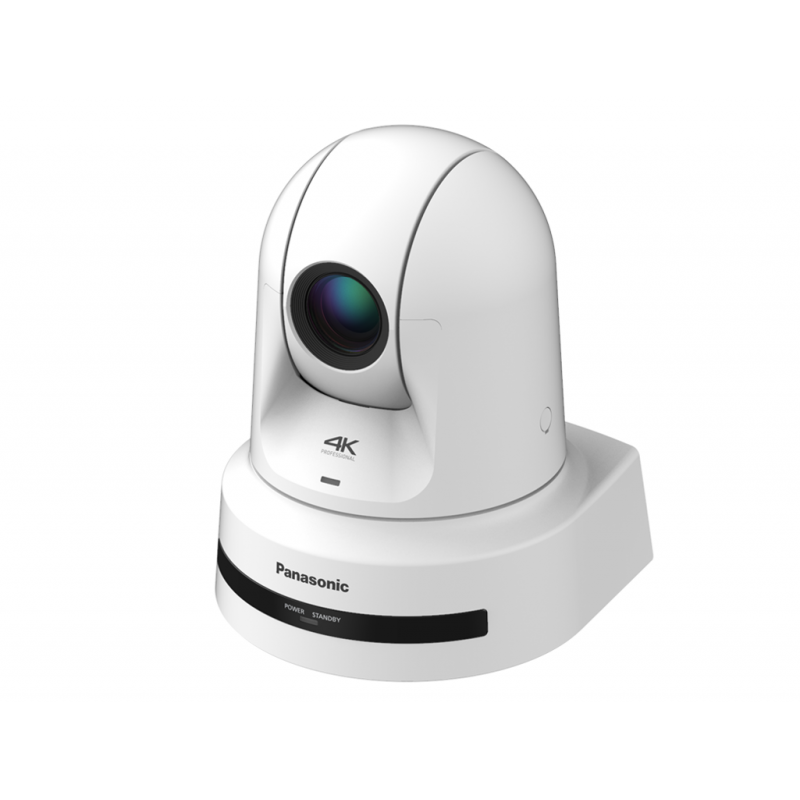

Finish | AW-UE80W: WhiteAW-UE80K: Black | ||
Compatible controllers | AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*2 | ||
Camera part | |||
Image Sensors | 1/2.5-type 4K MOS x 1 | ||
Lens | Motorized Optical 24x zoom, F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)] | ||
Zoom | • Optical zoom: 24x• i.Zoom UHD 28x, FHD 36x• Digital extender zoom: 1.4x, 2x | ||
Conversion Lens | Not supported | ||
Angle of View Range | Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele) | ||
Optical Filter | Through, 1/4, 1/16, 1/64, IR through(IR through is used as "night mode") | ||
Focus | Switching between auto and manual | ||
Focus Distance | Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft) | ||
Color Separation Optical System | 1MOS | ||
Minimum Illumination | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) | ||
Horizontal Resolution | 1,500 TV Typ (Center area, UHD mode, wide)1,000 TV Typ (Center area, FHD mode, wide) | ||
Gain Selection | Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB) | ||
Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4 | ||
Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||
23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||
50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||
25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | ||
Synchro Scan | 59.94p/59.94i | 60.0 Hz to 7200 Hz | |
29.97p | 30.0 Hz to 7200 Hz | ||
23.98p/24p | 24.0 Hz to 7200 Hz | ||
50p/50i | 50.0 Hz to 7200 Hz | ||
25p | 25.0 Hz to 7200 Hz | ||
Gamma | HD / Normal / Cinema1 / Cinema2 / Still Like | ||
White Balance | • ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)• AWB: AWB-A / AWB-B• VAR (selectable between 2000 K and 15000 K by designating a value) | ||
Chroma Amount Variability | OFF, -99 % to 99 % | ||
Output Format | SDI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just),23.98p (Native), 720/59.94p, 50p |
HDMI | 4K | 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native) | |
HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p | ||
Synchronization System | |||
Internal/External synchronization (BBS/Tri-level sync) | |||
Input | |||
Input Connector | DC 12 V IN, G/L IN(BNC)BBS (Black Burst Sync), tri-level sync supported) | ||
Output | |||
Video Output | HDMI | HDMI 2.0 connector4:2:2/10bit• HDCP is not supported.• Viera Link is not supported. | |
3G-SDI OUT | SMPTE292M/424M/ 75 Ω(BNC×1)• Level-A/Level-B supported | ||
Input/output | |||
Input/Output Connector | LAN | LAN terminal for IP control (RJ-45) | |
RS-422 | CONTROL IN RS422A(RJ-45) | ||
MIC/LINE input | AAC compatibility (compatible with IP only)Φ3.5 mm stereo mini jack• During MIC inputInput level: -40 dBV (0 dB=1 V/Pa, 1 kHz)Supply voltage: 2.5 V±0.5 V (plug-in power compatible)"• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)Approx. 20 kΩ (when plug-in power is turned OFF)"• During LINE inputInput level: -10 dBVInput impedance: Approx. 3 kΩ• Input volume variable range: -36 dB to 12 dB (3 dB step)• Embedded audio output level: -12 dBFS• Sampling frequency: 48 kHz• Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP) | ||
Pan-tilt Head Unit | |||
Camera/Pan-tilt Head Control | IP connecting cable | • If you have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)• If you don't have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft) | |
AW protocol connecting cable | • LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft) | ||
Installation Method | Stand-alone (Desktop) or suspended (Hanging)*7 | ||
Pan/tilt Operation Speed | Speed range: 0.08°/s to 60°/s (Normal mode)*8 | ||
• 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s | |||
Panning Range | ±175° | ||
Tilting range | -30°to 90°*9 | ||
Quietness | NC25 or less | ||
Supported Operating Systems and Web Browsers | Windows*10 | Windows 10Windows® Internet Explorer® 11(32 bit / 64 bit)Microsoft EdgeGoogle Chrome | |
Mac*10 | Mac OS v11.0.1 / Safari 14.01Mac OS v11.0.1 / Google ChromeMac OS v10.15 / Google ChromeMac OS v10.14 / Google Chrome | ||
iPhone / iPad*10 | iOSSafariiPadOS | ||
Android*10 | Android OSGoogle Chrome | ||
IP Streaming | |||
Image Streaming Mode | JPEG(MJPEG), H.264, H.265, NDI®|HX version 2*11, 12, 13 (H.264), High Bandwidth NDI® | ||
Image Resolution | 1920×1080, 1280×720, 640×360, 320×180 | ||
Image Transmission Setting | JPEG | Frame rate: Maximum 30fpsImage quality (Fine / Normal) | |
H.264 | Transmission Type | Unicast port (AUTO)Unicast port (MANUAL)Multicast port | |
Transmission Priority | Constant bit rateFrame rateBest effort | ||
Frame Rate | [60 Hz] 5fps / 15fps / 30fps / 60fps[50 Hz] 5fps / 12.5fps / 25fps / 50fps | ||
H.265 | Transmission Type | Unicast port (AUTO)Unicast port (MANUAL)Multicast port | |
Frame Rate | [60 Hz] 30fps / 60fps[50 Hz] 25fps / 50fps | ||
H.264/H.265 | Max Bit Rate | 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps | |
Audio Compression Type | AAC-LC, 48 kHz, 16 bit, 2 ch | ||
Supported Protocols | IPv6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTSP/RTP, MLD, ICMP, ARP, SRT | |
IPv4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP/RTP, MPEG2-TS, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT | ||
NDI® Support | |||
NDI Support | NDI®|HX version 2: Included as standardHigh Bandwidth NDI®: Included as standard*14 | ||
Output format | High Bandwidth NDI® | 【HD】1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p | |
Image Resolution(NDI®|HX version 2) | 1920x1080, 1280x720 | ||
Image Transmission Setting | High Bandwidth NDI® | Transmission Type | TCP/UDP, Unicast/Multicast |
Max Bit Rate | 250 Mbps | ||
NDI®|HX version 2 | Transmission Type | TCP/UDP, Unicast/Multicast | |
Audio Compression Type | High Bandwidth NDI® | AAC-LC, 48 kHz, 2 ch | |
NDI®|HX version 2 | AAC-LC, 48 kHz, 16 bit, 2 ch | ||
New functions | |||
F-number display | Displayed on the AW-RP150GJ and AW-RP60GJ sides | ||
Menu display on IP video | Supported*15 | ||
Powe LED | ON/OFF control | ||
Tripod screw penetration measures | Possible | ||
Pan/tilt mechanical method | New Direct Drive System | ||
Image Stabilization | OIS 2-axisMENU switching: Select between Off/O.I.S.(STABLE)/O.I.S.(PAN/TILT) | ||
Privacy Mode | The lens surface faces backward when standing by (ON/OFF)* Default is OFF | ||
Other functions | |||
Tally LED Display Color | red / green | ||
VR compatibility | Supports FreeD protocol |
