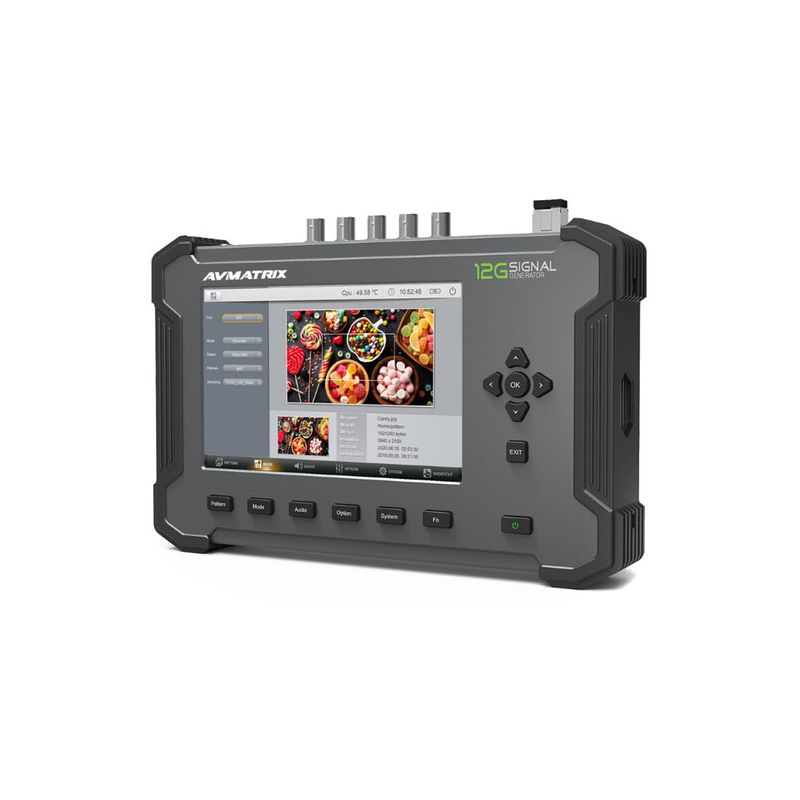

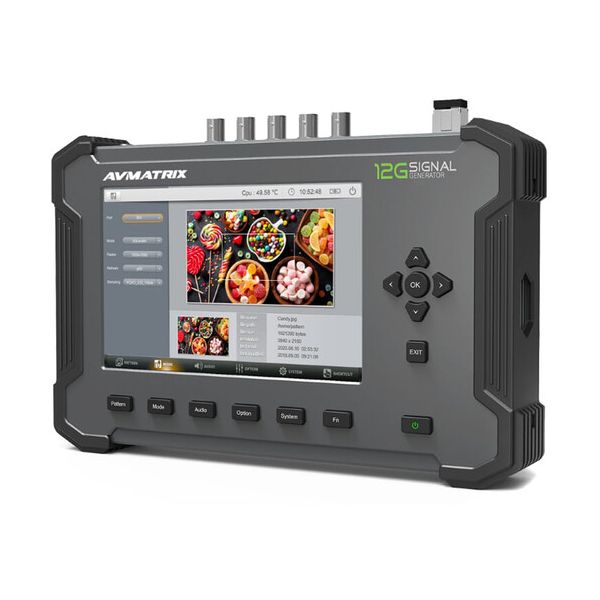

AVMATRIX 12G-SDI & 4K HDMI 2.0 Pattern Generator

12G-SDI & 4K HDMI 2.0 Pattern Generator

Más detalles

PG4K
Nuevo producto

6 048,79 € Precio con IVA

4 999,00 €Precio sin IVA

- +


Más información

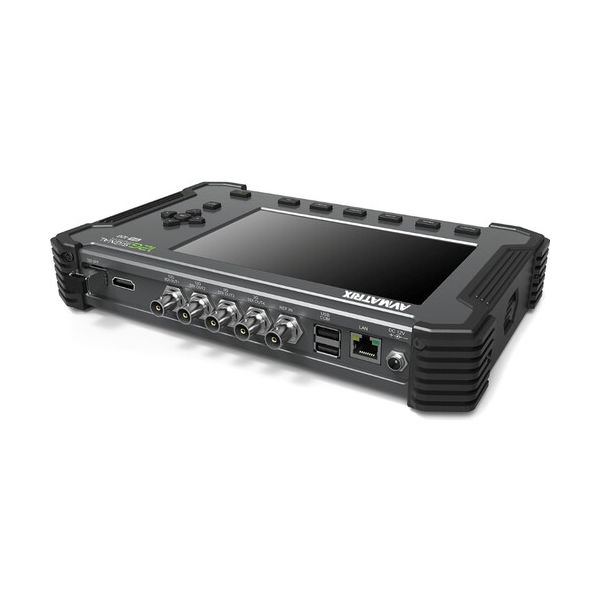

Input

1 x BNC Reference
1 x RJ45 LAN
2 x USB Type-A

Output

2 x 12G-SDI
2 x 3G-SDI
1 x HDMI 2.0
1 x SFP Slot (for Optional SFP Module)

Standards

Single-Link:
12G-SDI
ST 2082-10 Mode 1

Dual-Link:
2 x 6G-SDI
ST 2081-11 Mode 1

Quad-Link SQD and 2SI:
4 x 3G-SDI
Level A / Level B
ST 425-5

SDI Supported Resolutions

Single-Link 12G-SDI / Dual-Link 2 x 6G-SDI / Quad-Link 4 x 3G-SDI:

4096 x 2160 / 3840 x 2160 at 30/29.97/25/24/23.98 fps
GBR 4:4:4 10 Bit
GBR+A 4:4:4:4 10 Bit
YCbCr 4:4:4 10 Bit
YCbCr+A 4:4:4:4 10 Bit
GBR 4:4:4 12 Bit
YCbCr 4:4:4 12 Bit
YCbCr 4:2:2 12 Bit

4096 x 2160 / 3840 x 2160 at 60/59.94/50/48/47.95 fps
YCbCr 4:2:2 10 Bit

HDMI Supported Resolutions

4096 x 2160 / 3840 x 2160 at 60/59.94/50/48/47.9530/29.97/25/24/23.98 fps

Display Size

7" / 17.8 cm

Display Type

IPS

Display Resolution

1280 x 800

Aspect Ratio

16:10

Brightness

400 cd/m²

Contrast

800:1

Viewing Angle

178° H x 178° V

Housing

Metal

Power Connector

12 VDC Barrel

Power Current

2.3 V

Input Voltage

10 to 15 VDC

Power Consumption

27 W

Built-In Battery

5000 mAh

Battery Runtime

2.5 Hours

Operating Temperature

14 to 140°F / -10 to 60°C

Storage Temperature

-22 to 158°F / -30 to 70°C

Dimensions

10.4 x 6.7 x 1.7" / 264 x 169 x 42 mm

Weight

6.6 lb / 3 kg
