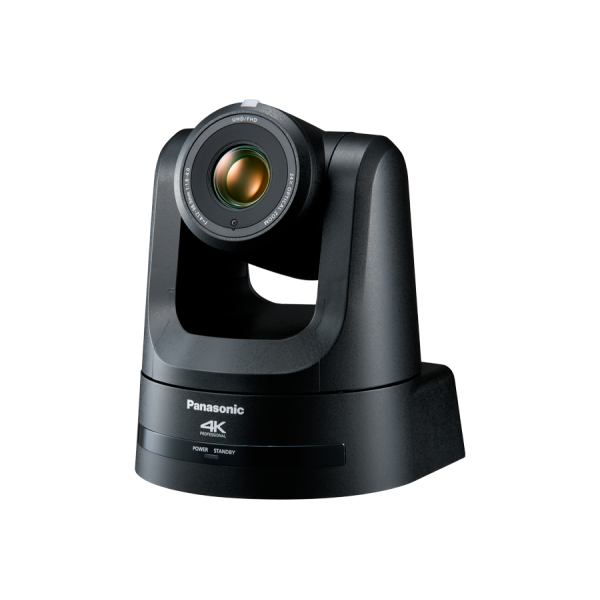

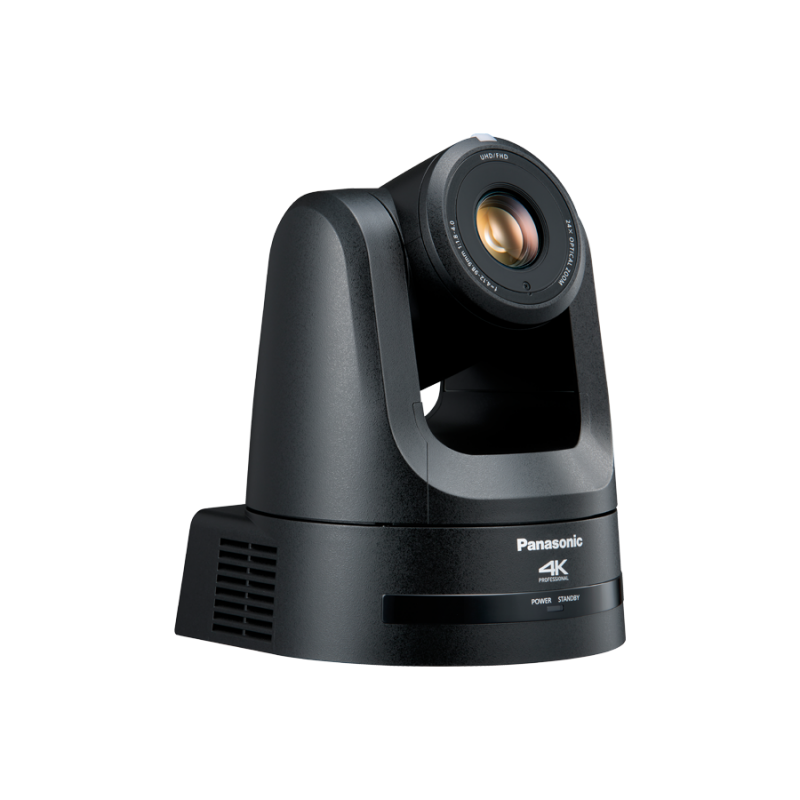

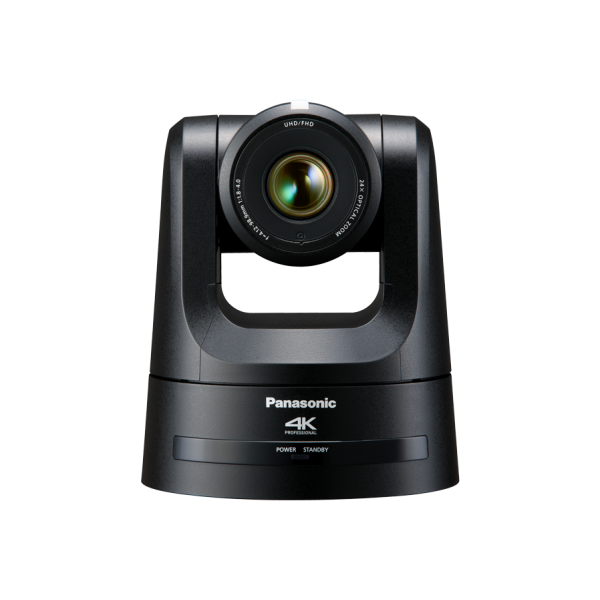

Panasonic cámara PTZ 4K NDI Pro 24x AW-UE100K (negra)
Panasonic cámara PTZ 4K NDI Pro 24x AW-UE100K (negra)
AW-UE100K
Nuevo producto
Image Sensor
Image Sensor | 1-Chip 1/2.5" MOS Sensor |
Horizontal Resolution (TV Lines) | 1400 TV Lines |
Camera
| Precise Scan Rate Control | Yes |
| Max Digital Zoom | 36x ( in 1080p) |
Lens
| Optical Zoom Ratio | 24x |
| Focal Length | 4.1 to 98.9mm |
| 35mm Equivalent Focal Length | 25 to 600mm |
| Field of View | Horizontal: 3.3 to 74.1° Vertical: 1.9 to 46° Diagonal: 3.8 to 81.8° |
| Maximum Aperture | f/1.8 to 4 |
| Image Stabilization | Optical Digital |
| Focus Control | Autofocus Manual Focus |
Video Output
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | HDMI: 3840 x 2160p at 25, 29.97, 50, 59.94 fps 1920 x 1080p at 23.98, 24, 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 23.98, 25, 29.97 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps SDI: 3840 x 2160 at 23.98, 24, 25, 29.97, 50, 59.94 fps 1920 x 1080p at 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 23.98, 25, 29.97 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps |
| Embedded Audio | HDMI/SDI: 2-Channel |
| IP Streaming | H.264, H.265, MJPEG: 1080i, 1080p, 720p, 480p, 360p |
Recording
| Audio Recording | None |
Control
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 240° (-30 to 210°) |
| Supported Control Protocols | IP RS-422 |
Interfaces
| Video Output Connectors | 1 x BNC (12G-SDI / 3G-SDI) Female 1 x HDMI Type A (HDMI 2.0) Female 1 x RJ45 (NDI) Female |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Line Level Input |
| Control Interface | 1 x RJ45 (RS-422) Input |
| Other I/O | 1 x BNC (Genlock) Input |
Power
| PoE Support | PoE++ 802.3bt |
| Power Connectors | 1 x Barrel / Coaxial (10.8 to 13.2 VDC) |
| Power Consumption | Device: 3 A Power Supply: 3 A PoE: 42 to 57 VDC at 1.2 A |
General
| Dimensions | 8.06 x 6.72 x 6.66" / 204.6 x 170.6 x 169.2 mm |
| Weight | 5.07 lb / 2.3 kg |
Packaging Info
| Package Weight | 9.22 lb |
| Box Dimensions (LxWxH) | 15 x 13.7 x 11.9" |
Pedir Presupuesto.
