SENSOR

1/1.7 inch, 12mega pixel high quality Sony CMOS sensor

HDMI

3840*2160p30/25, 1920*1080p60/59.94/50/30/29.97/25/24, 1920*1080i60/59.94/50, 1280*720p60/59.94/50/30/29.97/25

NDI

3840*2160@15~30;

1920*1080@15~30;

1280*720@15~30;

1024*576@15~30;

640*360@15~30(low bandwidth mode)

SDI

1920*1080p60/59.94/50/30/29.97/25/24, 1920*1080i60/59.94/50, 1280*720p60/59.94/50/29.97/30/25

USB

USB3.0: 1920*1080p60/50/30/25, 1280*720p60/50/30/25, 1024*576p30

USB2.0: 1024*576p30, 960*540p30, 640*360p30, 512*288p30, 1280*720p25

IMAGEN

Zoom: 35x optical zoom+2x digital zoom

FOV: 2.02﹉(near)~60﹉(far)

Min. Focus Distance: Wide: 0.3m    Tele:  1.5m

Noise Reduction: 2D&3D

SNR: >50dB

Focal Length: fˊ5.8(near)＃203mm(far)

Minimum LUX: 0.1 LUX

White Balance: Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/Sodium /Fluorescent

Anti-Flicker: 50Hz/60Hz/OFF

D/N Mode: Supported

Gamma: Supported

Mirror Image: Supported

Pan/Tilt Flip: Supported

Iris: Auto / Manual

Electric Shutter: Auto / Manual

BLC: Auto / Manual

Focus: Auto / Manual

ENCODE

Video Encoding: H.264/H.265

Bit Rate Control: Variable Bit Rate, Constant Bit Rate

Network Speed: 1000M

Video Bit Rate: 1024Kbps~51200Kbps

Frames: 50HZ: 15fps~50fps  60HZ: 15fps~60fps  ㄗ3840▼2160 max. 30fpsㄘ

IP Protocol: NDI, TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, VISCA over IP (TCP&UDP), HTML5

MECANISMO

Preset: 10 via remote controller;   128 via serial port;   preset precision: 0.1﹉

Rotation Angle: Pan:  -170﹉ ~ +170﹉;      Tilt:  -30﹉ ~ +90﹉

Rotation Speed: Pan:  -0﹉~120﹉/s;      Tilt:  0﹉~80﹉/s

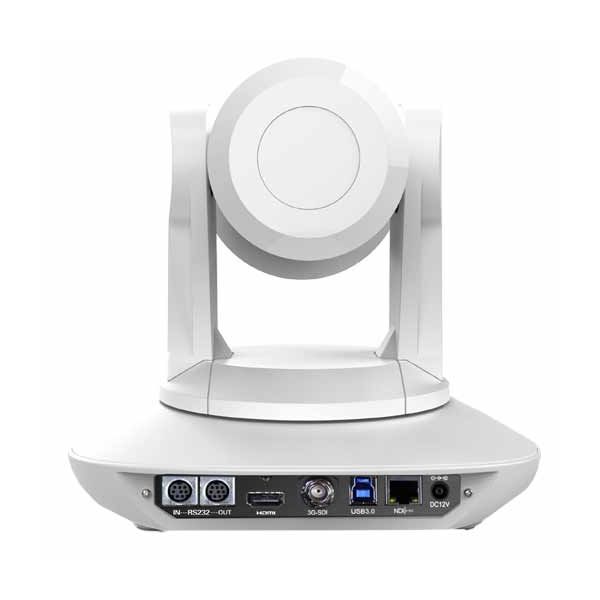

Control Port: RS232 / RS485/RJ45/USB3.0

Video Port: NDI/HDMI/3G-SDI/USB3.0

POE: Supported, POE+(IEEE802.3at)

Input Voltage: DC12V, 2A

Dimension: 220mm▼190mm▼205.8mm

Net Weight: 1.75KGS (3.86LBS)
