SENSOR

Sensor: 1/2.8 inch, 2.4mega pixel high-quality CMOS sensor

Zoom: 20x optical zoom

FOV: 3.2﹉ㄗwideㄘ~ 60﹉ㄗTeleㄘ

Focal Length: fˊ5.2(near)＃98mm(far)

F.no.: Wide:  F1.5(Wide)~3.0ㄗTeleㄘ

HDMI

1920*1080p60/59.94/50/30/29.97/25/24; 1920*1080i60/59.94/50; 1280*720p60/59.94/50/30/29.97/25:

NDI|HX

1920*1080@3~60;

1280*720@3~60;

1024*576@3~60;

640*360@3~60(low bandwidth mode)

SDI

1920*1080p60/59.94/50/30/29.97/25/24; 1920*1080i60/59.94/50; 1280*720p60/59.94/50/30/29.97/25:

USB

USB3.0: 1920*1080p60/50/30/25; 1280*720p60/50/30/25; 1024*576p30

USB2.0: 1024*576p30; 960*540p30; 640*360p30; 512*288p30; 1280*720p25

IMAGEN

Noise Reduction: 2D&3D

SNR: >50dB

Minimum LUX: 0.1 LUX

White Balance: Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/Sodium /Fluorescent

Anti-Flicker: 50Hz/60Hz/OFF

D/N Mode: Supported

Gamma: Supported

Mirror Image: Supported

Pan Tilt Flip: Supported

Iris: Auto / Manual/

Electric Shutter: Auto / Manual/

BLC: Auto / Manual/

Focus: Auto / Manual/

ENCODE

Video Encoding: H.264/H.265

Network Speed: 1000M

Bit Rate Control: Variable Bit Rate, Constant Bit Rate

Video Bit Rate: 1024Kbps~16384bps

Frames: 3fps~60fps

IP Protocol: NDI, TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, VISCA over IP (UDP&TCP), HTML5

MECANISMO

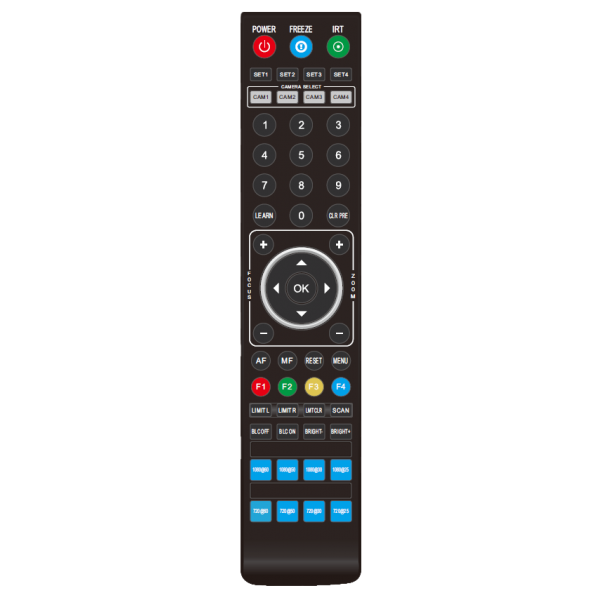

Preset: 10 via remote controller; 128 via serial port; preset precision: 0.1﹉

Rotation Angle: Pan:  -170﹉ ~ +170﹉;   Tilt:  -30﹉ ~ +90﹉

Rotation Speed: Pan:  0﹉~120﹉/s ;         Tilt:  0﹉~80﹉/s

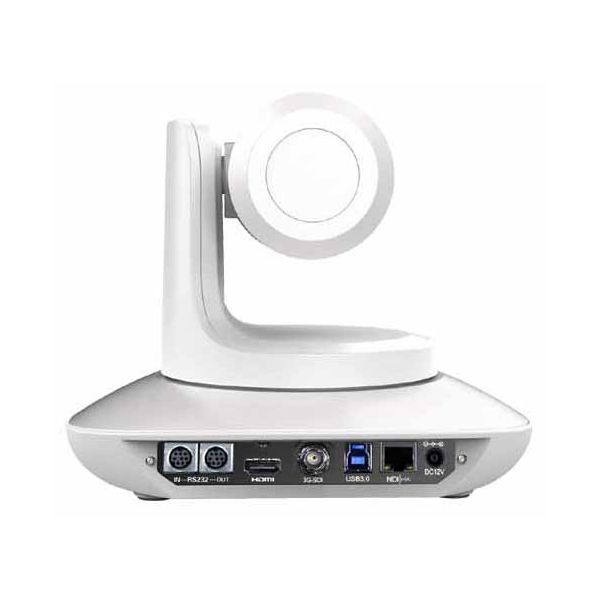

Control Port: RS232 / RS485/RJ45/USB3.0

Video Port: NDI/HDMI/SDI/USB3.0

POE: Supported, POE+ (IEEE802.3at)

Input Voltage: DC12V, 2A

Dimension/Net Weight: 220mm▼173mm▼190mm/1.35KGSㄗ3LBSㄘ
