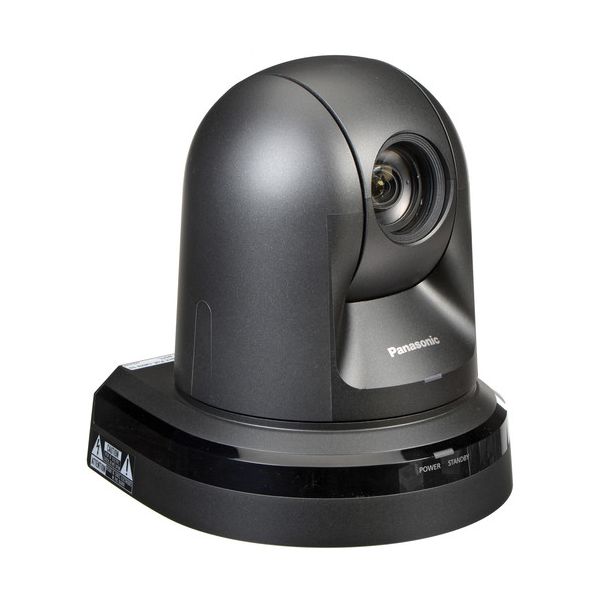

Panasonic Cámara PTZ AW-HE40SK HD-SDI (negra)
Panasonic Cámara PTZ AW-HE40SK HD-SDI (blanca)
AW-HE40SK
Nuevo producto
FEATURES
Image Sensor
Image Sensor | 1-Chip 1/2.3" MOS Sensor |
Horizontal Resolution (TV Lines) | 1000 TV Lines |
Gain | 0 to 48 dB |
Minimum Illumination | 0.7 Lux at 1/60 Shutter Speed |
White Balance | 2400 to 9900K |
Camera
| Shutter Speed | 1/25 to 1/10,000 sec |
| Max Digital Zoom | 16x |
| Built-In ND Filter | None |
| Flip / Mirror Support | Image Flip |
Lens
| Optical Zoom Ratio | 30x |
| Focal Length | 4.3 to 129mm |
| 35mm Equivalent Focal Length | 31.6 to 962mm |
| Maximum Aperture | f/1.6 to 4.7 |
| Minimum Focus Distance | Wide: 3.9" / 10.0 cm Telephoto: 47.2" / 1.2 m |
| Focus Control | Autofocus Manual Focus |
Video Output
| Embedded Audio | HDMI/SDI |
| IP Streaming | H.264: 1080p, 720p |
| IP Multi-Stream Support | Yes |
Recording
| Recording Modes | Not Specified by Manufacturer |
| Audio Recording | 2-Channel 16-Bit 48 kHz AAC Audio |
| Memory Card Slot | 1 x microSDXC |
Control
| Move Speed | 90 to 300°/sec |
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 120° (-90 to 90°) |
| Supported Control Protocols | RS-232 RS-422 |
Interfaces
| Video Output Connectors | 1 x BNC |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input |
| Control Interface | 1 x 8-Pin Mini-DIN (RS-232) 1 x RJ45 (RS-422) |
| Other I/O | 1 x RJ45 (LAN) |
Power
| PoE Support | PoE+ 802.3at |
| Power Connectors | 1 x Barrel / Coaxial (12 VDC at 1.2 A) |
| Power Consumption | Device: 12 VDC at 1.2 A PoE: 42 to 57 VDC at 0.4 A |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 20 to 90% |
General
| Tripod Mounting Thread | 1 x 1/4"-20 Female |
| Sound Level | NC40 (at Normal Speed) |
| Dimensions | 7.3 x 6.5 x 6.3" / 186 x 166 x 160 mm |
| Weight | 3.3 lb / 1.5 kg |
Packaging Info
| Package Weight | 6.95 lb |
| Box Dimensions (LxWxH) | 12.7 x 11.3 x 10.2" |
