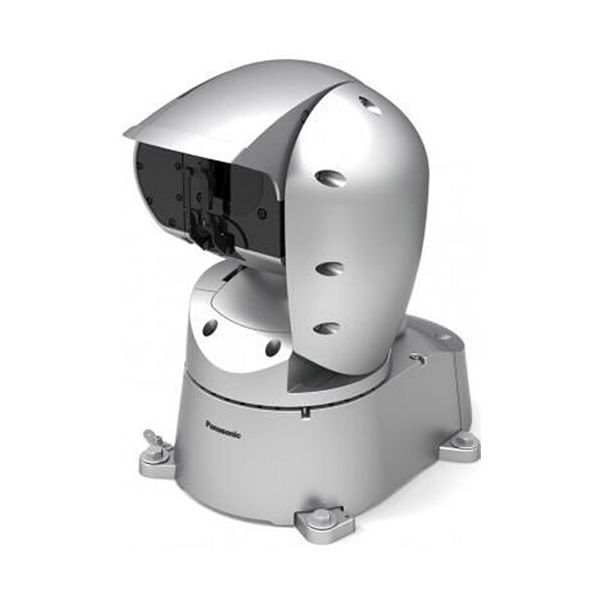

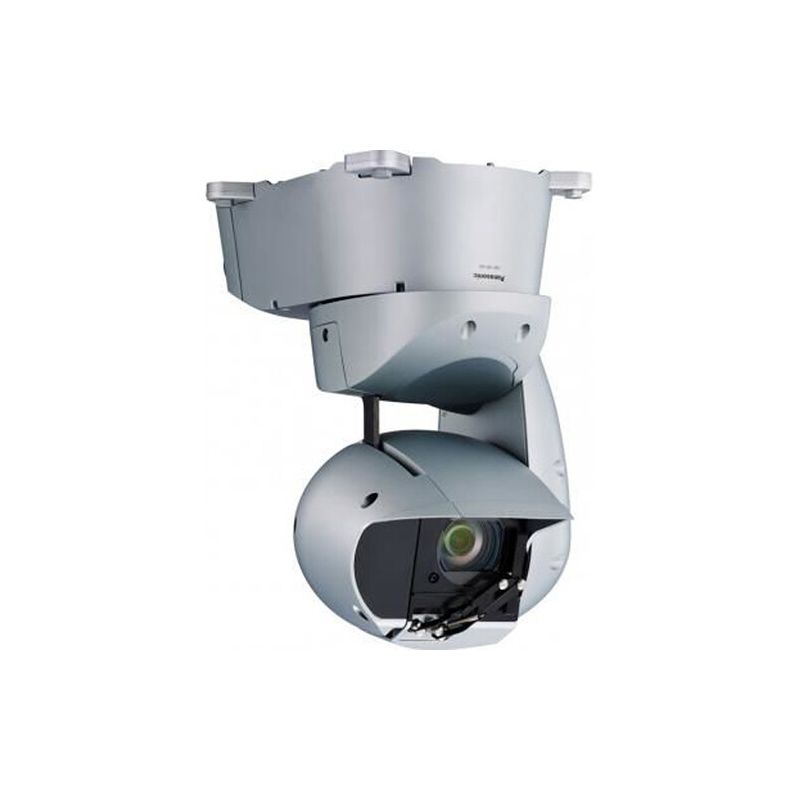

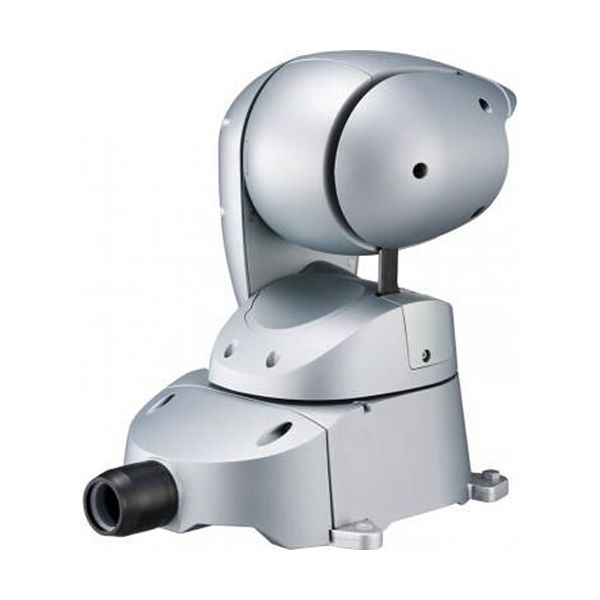

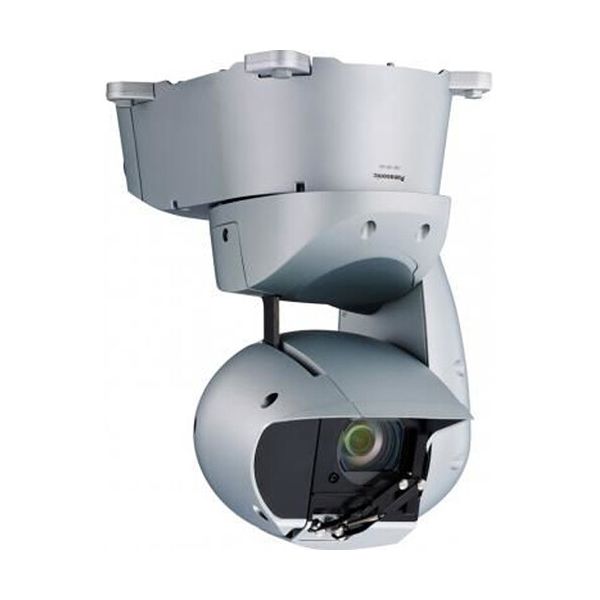

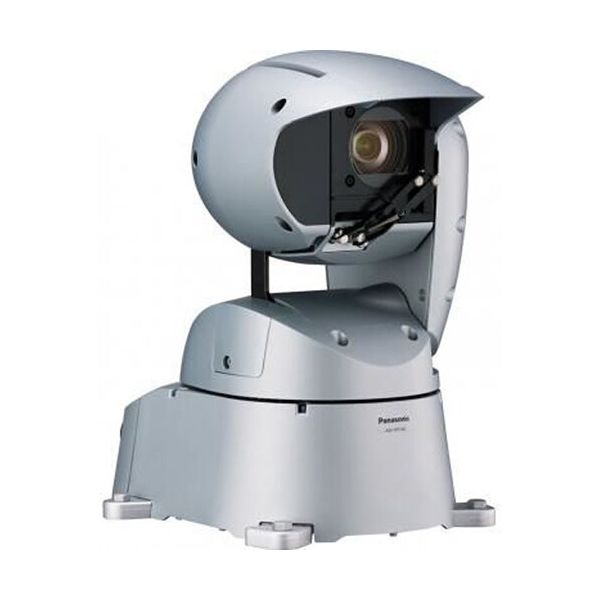

Panasonic Cámara PTZ Exterior 20x AW-HR140 IP/SDI (plata)
Panasonic Cámara PTZ Exterior 20x AW-HR140 IP/SDI (plata)
AW-HR140
Nuevo producto
FEATURES
Image Sensor
Image Sensor | 3-Chip 1/2.86” MOS Sensor |
Horizontal Resolution (TV Lines) | 1000 TV Lines |
Gain | 0 to 42 dB |
Minimum Illumination | 2 Lux |
White Balance | 2000 to 15,000K |
Camera
| Shutter Speed | 1/24 to 1/10,000 sec |
| Max Digital Zoom | 10x |
| Built-In ND Filter | None |
Lens
| Optical Zoom Ratio | 20x |
| Focal Length | 4.5 to 90mm |
| 35mm Equivalent Focal Length | 32.1 to 642.5mm |
| Maximum Aperture | f/1.6 to 3.4 |
| Minimum Focus Distance | Wide: 15.7" / 40.0 cm Telephoto: 31.5" / 80.0 cm |
| Image Stabilization | Digital |
| Focus Control | Autofocus Manual Focus |
Video Output
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | SDI, RJ45: 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 23.98, 25, 29.97 fps 1920 x 1080i at 25, 50, 59.94 fps 1280 x 720p at 50, 59.94 fps |
| Embedded Audio | SDI |
Control
| Move Speed | Pan: 60°/sec Tilt: 60°/sec |
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 240° (-30 to 210°) |
| Supported Control Protocols | IP RS-422 |
| Max Cable Length | 3280.8' / 1000 m (Cat 5e, Cat 6) 328.1' / 100 m (Cat 5e) |
Interfaces
| Video Output Connectors | 2 x BNC (3G-SDI) |
| Audio I/O | 1 x 3-Pin XLR Mic/Line Level Input |
| Control Interface | 1 x RJ45 (IP Control, LAN) 1 x RJ45 (RS-422) |
Power
| PoE Support | PoE++ 802.3bt |
| Power Connectors | 1 x Proprietary (12 VDC) |
| Power Consumption | Power Supply: 12 to 21.8 VDC at 3.1 A PoE: 42 to 57 VDC at 1.2 A |
Environmental
| Operating Temperature | 5 to 113°F / -15 to 45°C |
| Storage Temperature | -4 to 131°F / -20 to 55°C |
| Operating Humidity | 10 to 100% (Non-Condensing) |
General
| IP Rating | IP65 |
| Dimensions | 15.63 x 14.06 x 10.16" / 397 x 357 x 258 mm (Including Cable Cover and Protrusions) |
| Weight | 19.84 lb / 9 kg |
Packaging Info
| Package Weight | 27.7 lb |
| Box Dimensions (LxWxH) | 23.5 x 15.4 x 15.25" |
Pedir Presupuesto.
